simatool Fitting Tool FT-P

Tool set for the precise cold mounting of bearings (10-50mm) preventing damage to rolling elements.

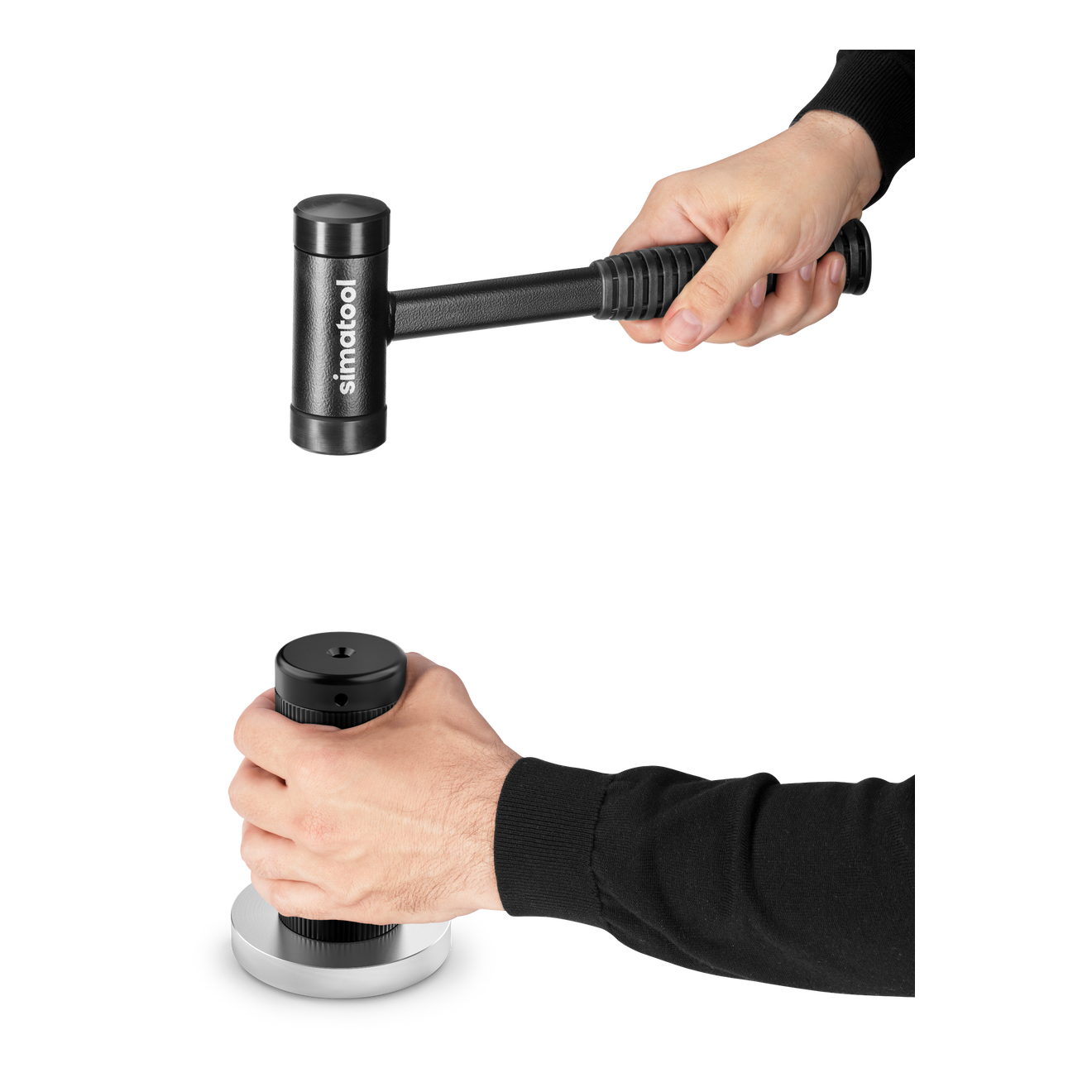

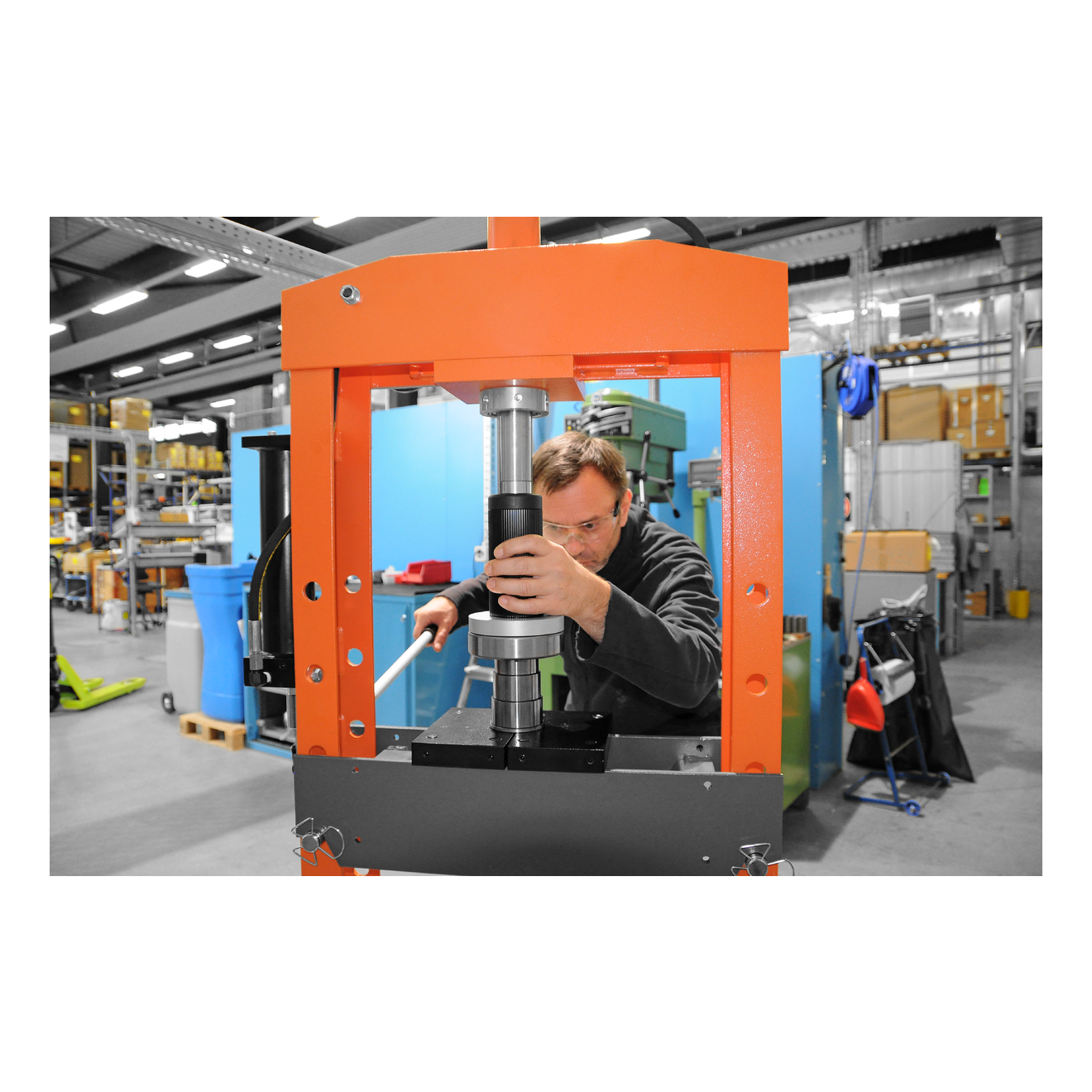

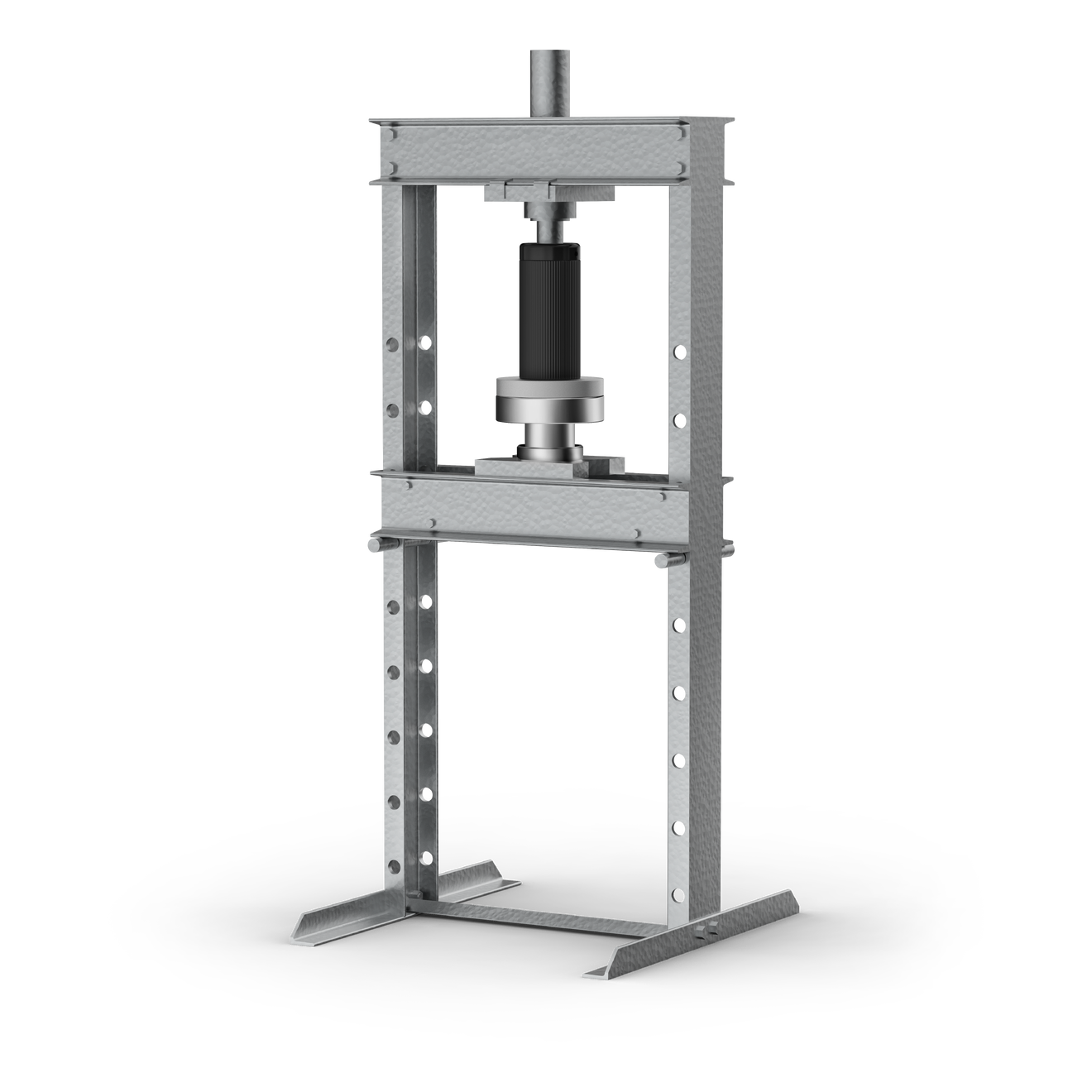

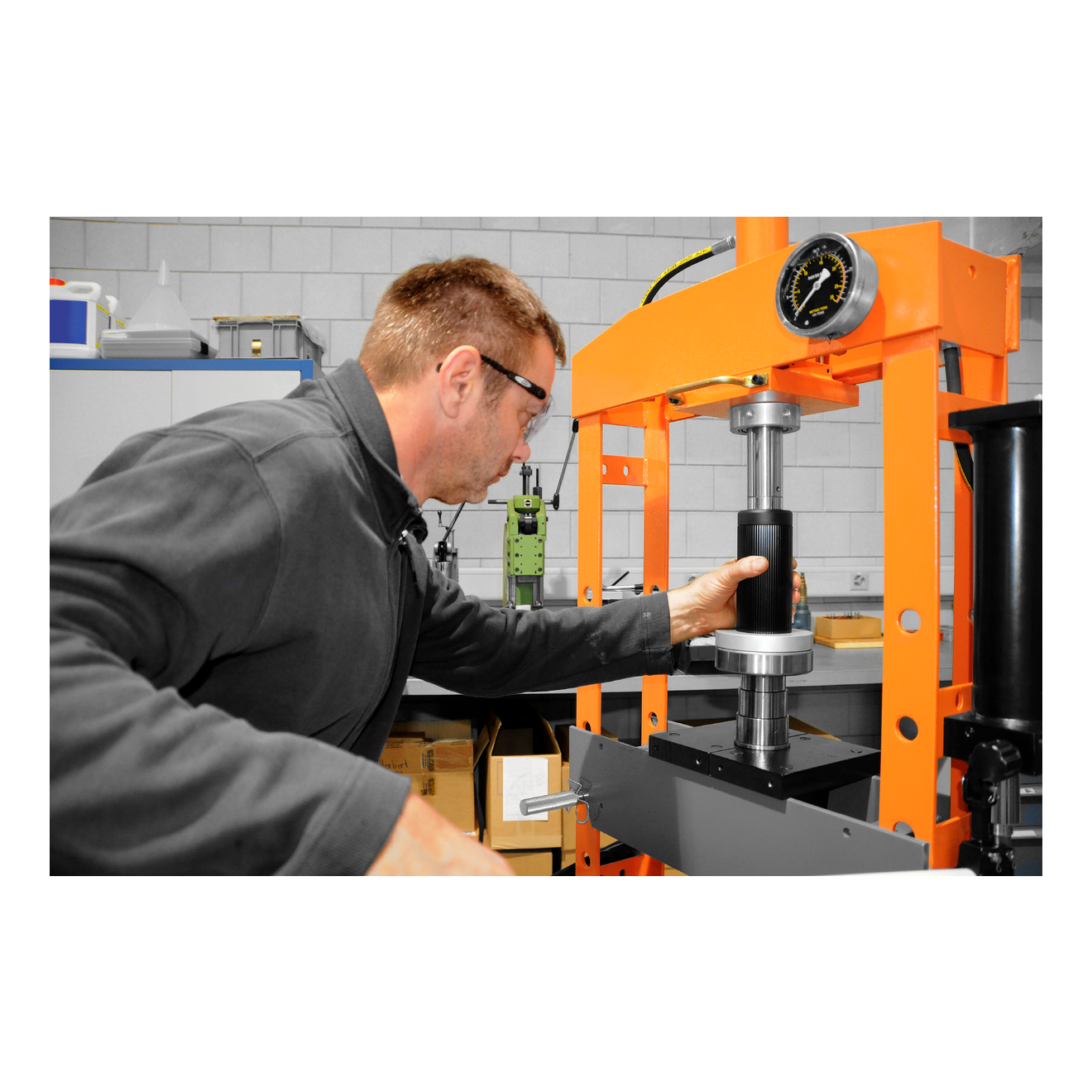

Thanks to the Fitting Tool FT-P - in combination with the mechanical press - a correct assembly of components with an inner diameter of more than 50 mm is guaranteed. The FT-P is the ideal solution for assemblies with greater installation forces, as the tool can be used on presses. It thus allows assemblies that would not be possible by hitting with a hammer.
  • Prevents mis-alignment while mounting larger bearings
Bore diameter
> 50 mm (Inner Diameter)
Dimensions
270 x 220 x 85 mm
Scope of delivery

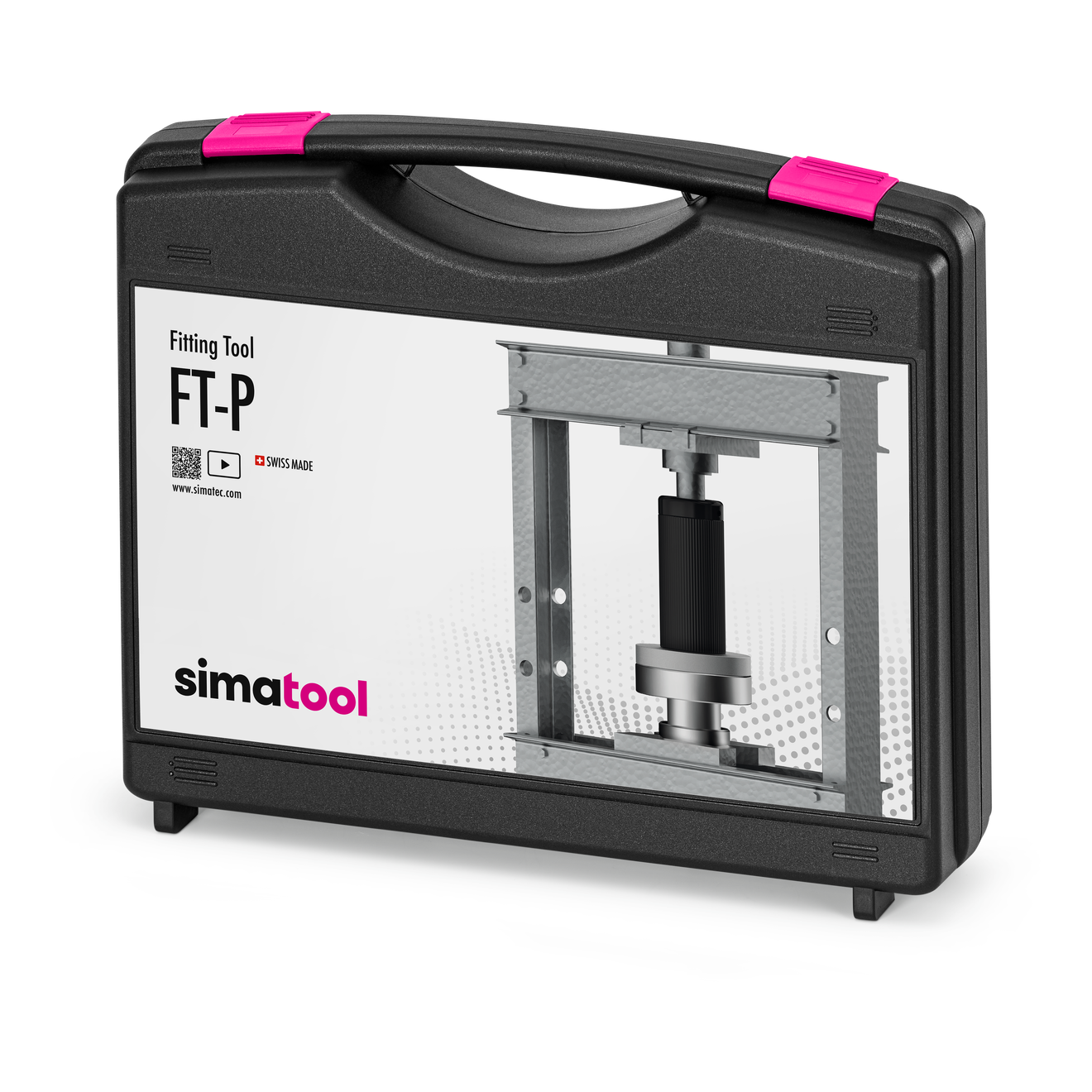

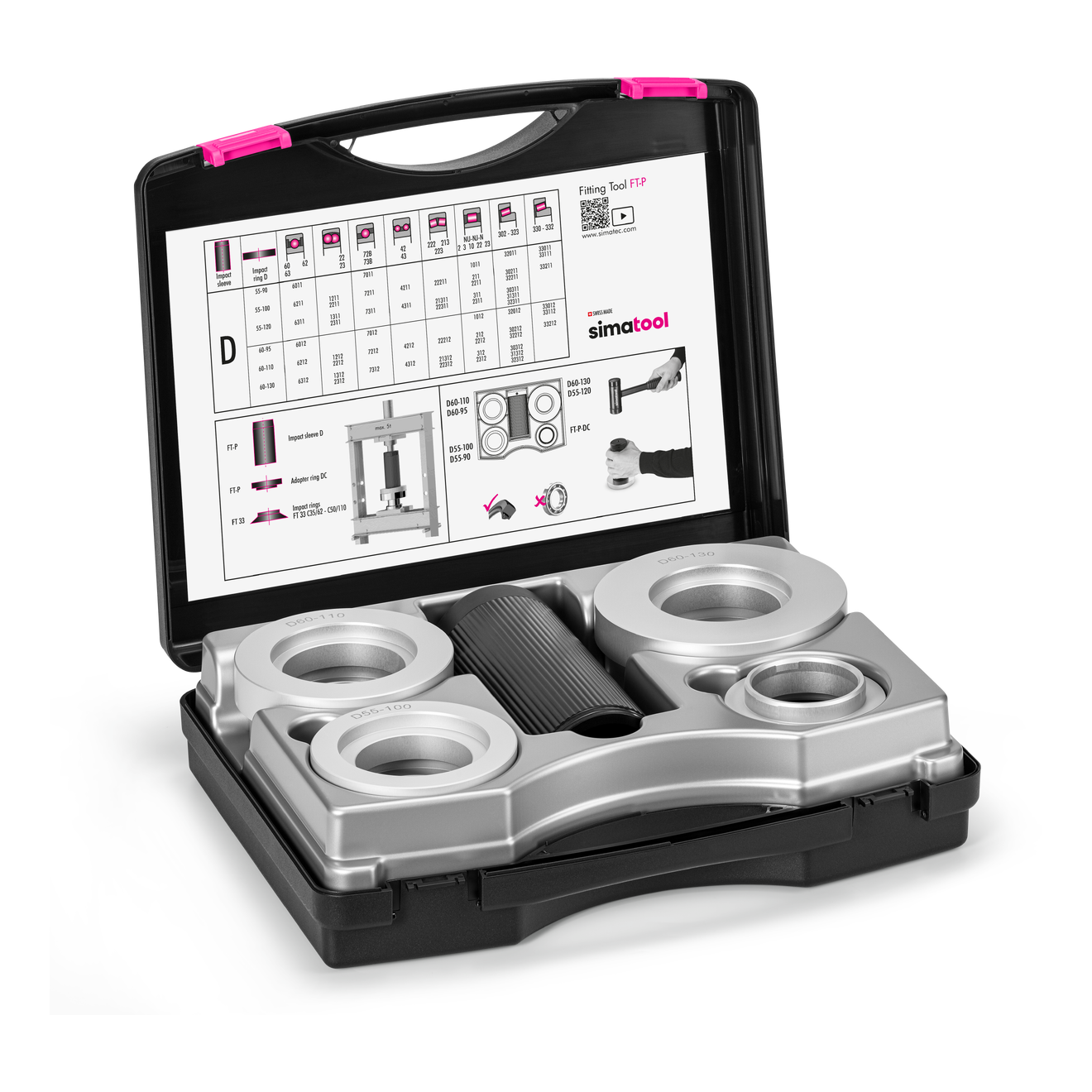

6x Aluminum rings, 1x Sleeve, 1x Adapter ring (for FT33 rings)
Function
Mounting via mechanical press
Maximum load
5 tonnes (Max Press Force)
Weight
1.5 kg

Downloads

Skip product gallery

Compatible Accessories

in stock

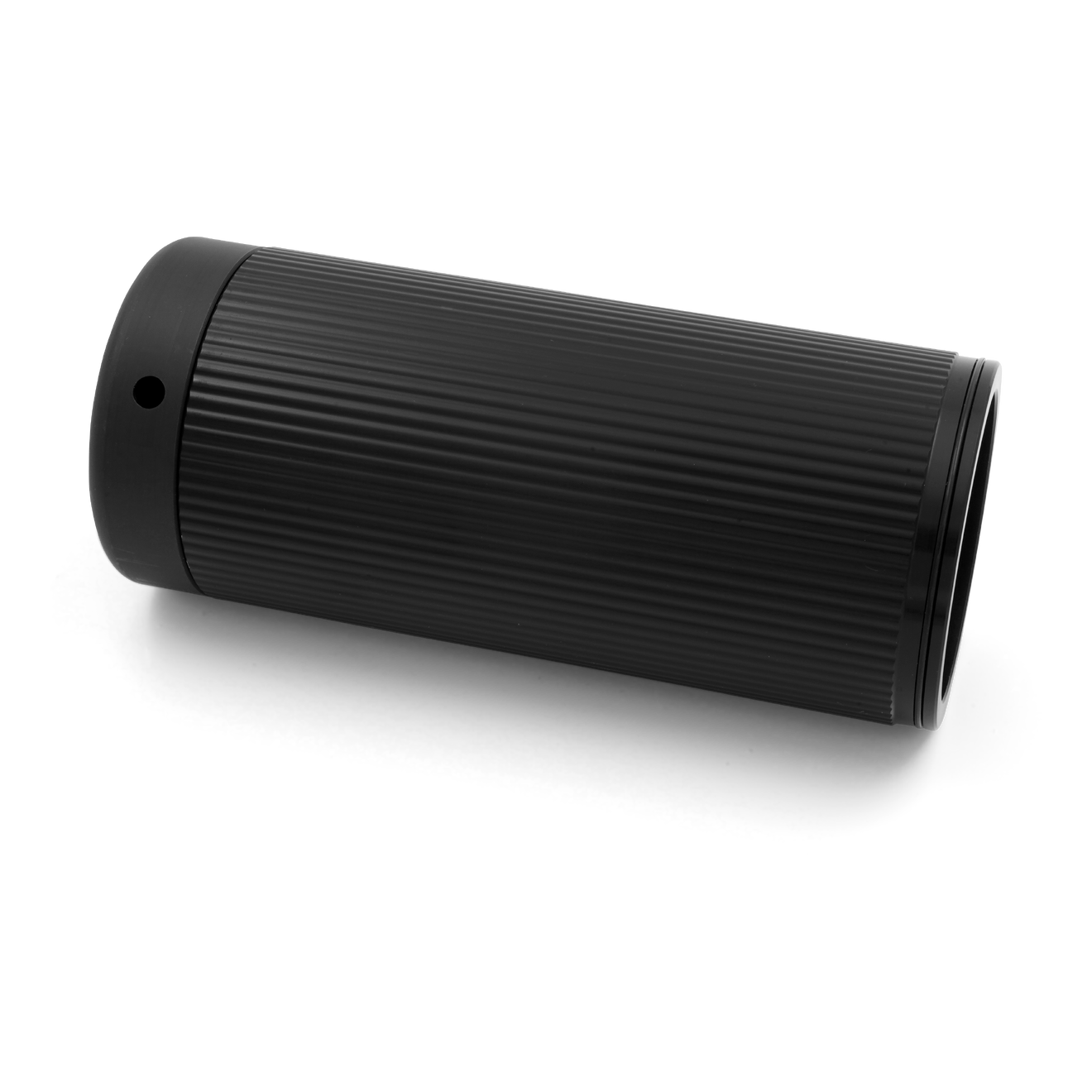

Impact Sleeve D
Product number: 390-10040
Regular price: CHF 147.57
in stock
Adapter Ring (DC)
Product number: 390-82050
Regular price: CHF 33.70
in stock
Aluminum Ring D55/90
Product number: 390-71920
Regular price: CHF 29.73
in stock
Aluminum Ring D55/100
Product number: 390-71930
Regular price: CHF 30.90
in stock
Aluminum Ring D55/120
Product number: 390-71940
Regular price: CHF 35.27
in stock
Aluminum Ring D60/95
Product number: 390-71950
Regular price: CHF 30.51
in stock
Aluminum Ring D60/110
Product number: 390-71960
Regular price: CHF 35.67
in stock
Aluminum Ring D60/130
Product number: 390-71970
Regular price: CHF 45.57
in stock
Product number: 390-81910
Regular price: CHF 55.99
