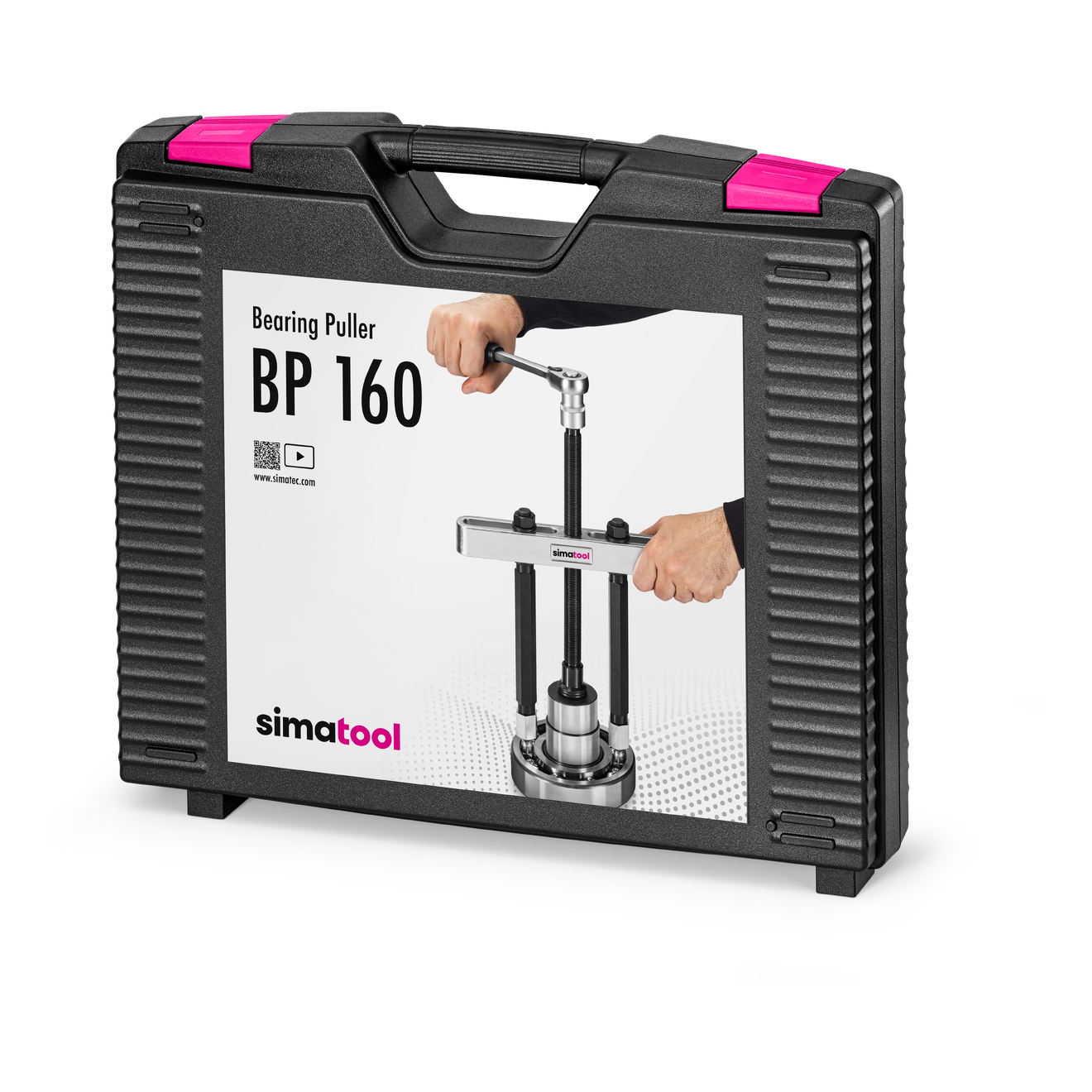

simatool Bearing Puller BP 160

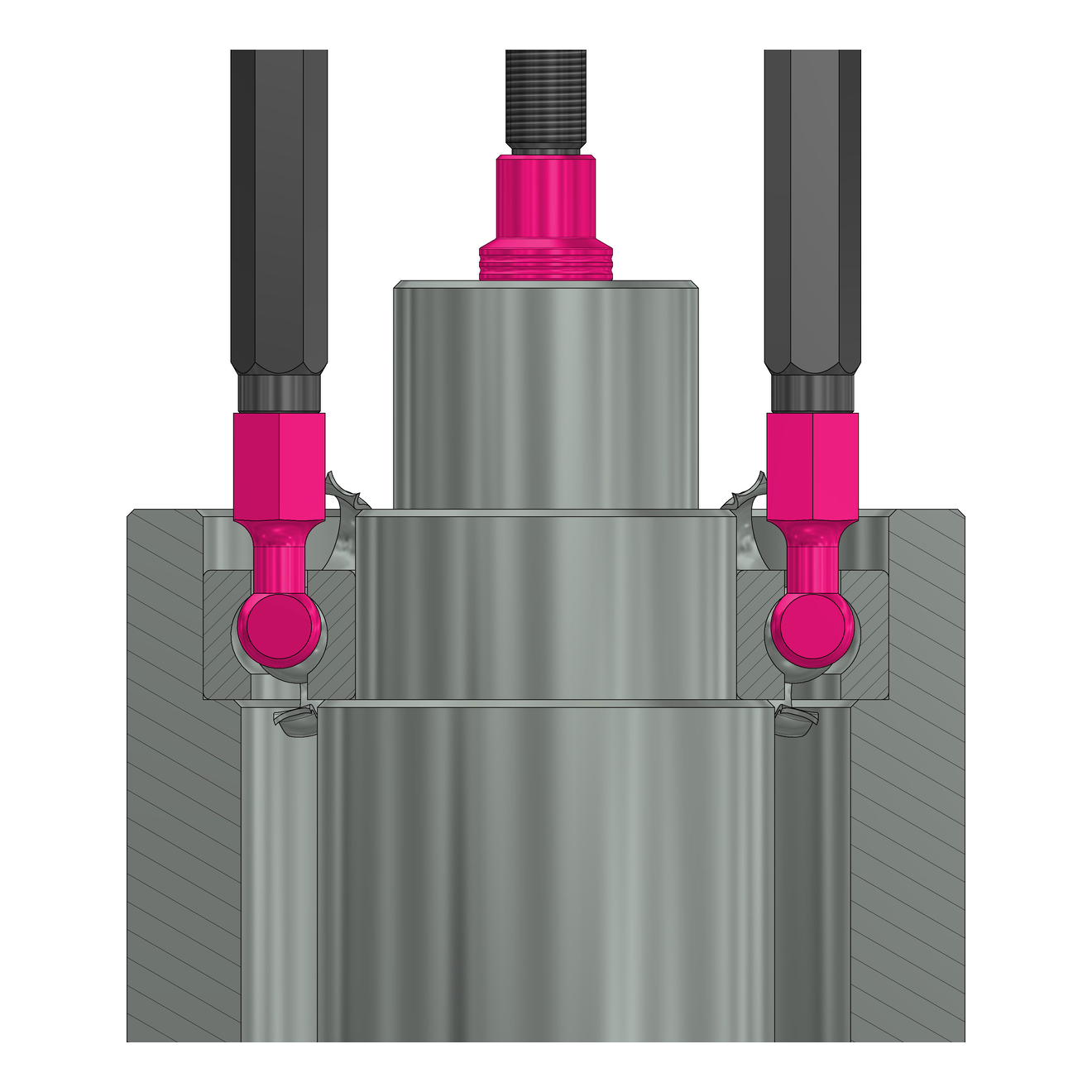

Internal extractor kit for removing deep groove ball bearings from blind housings without removing the shaft.

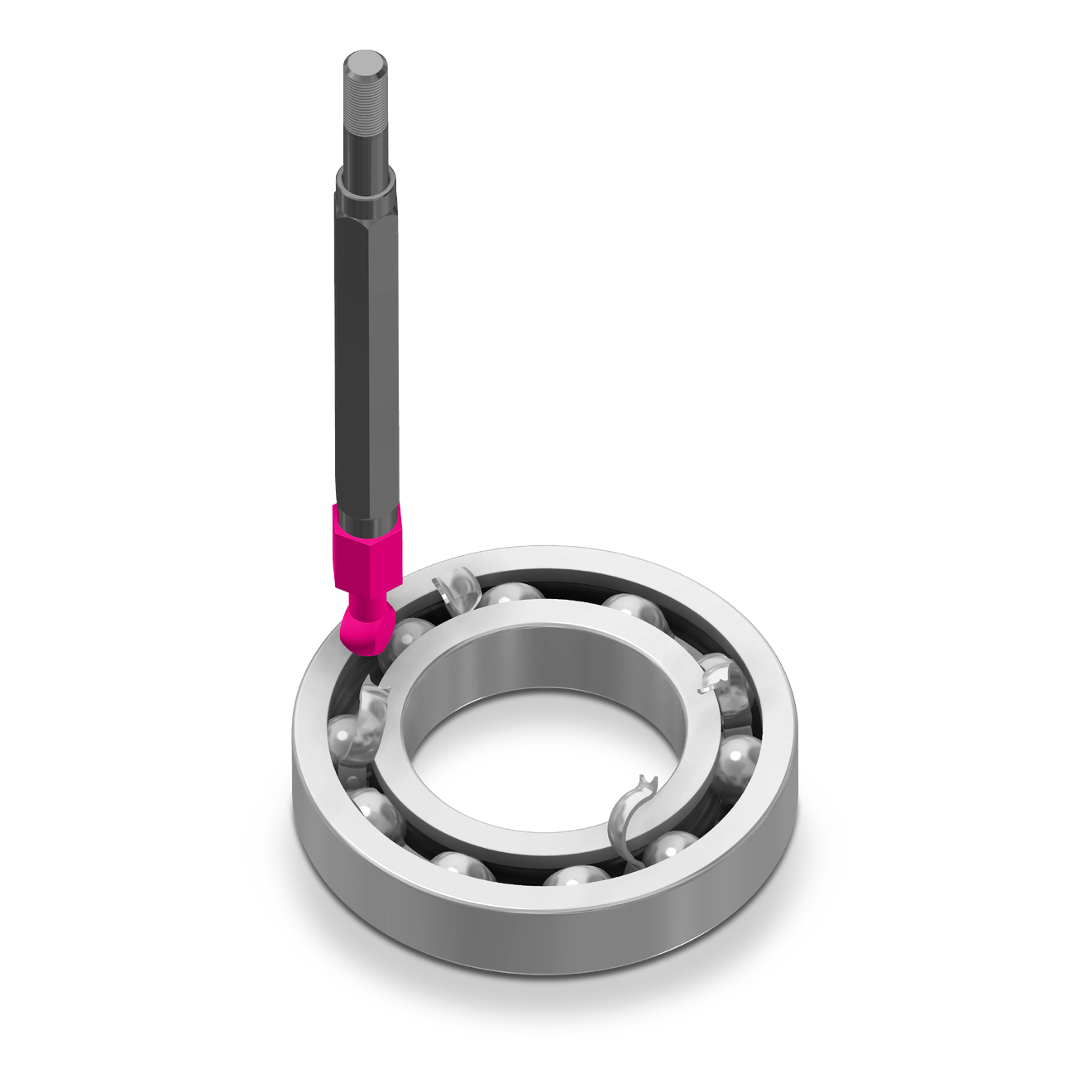

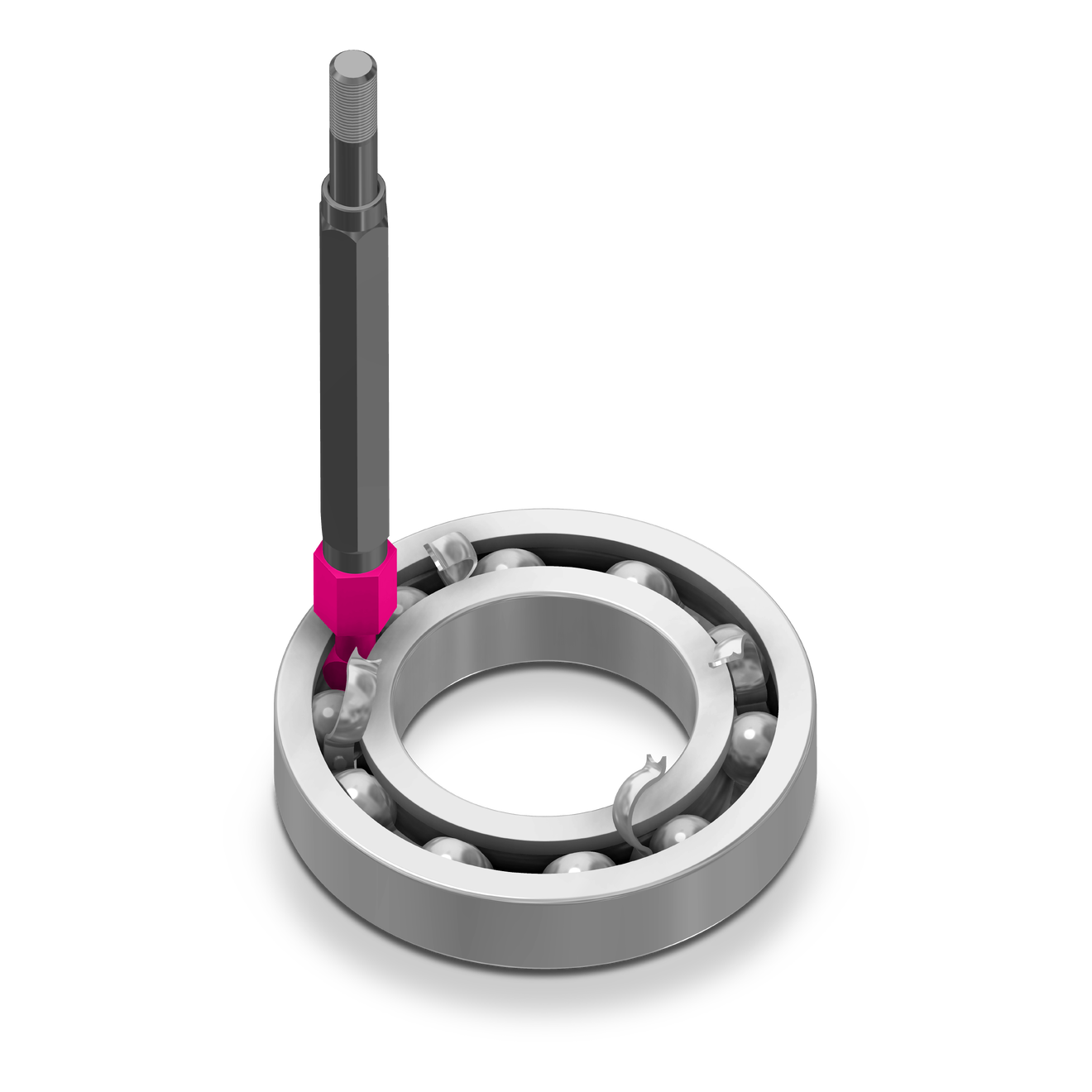

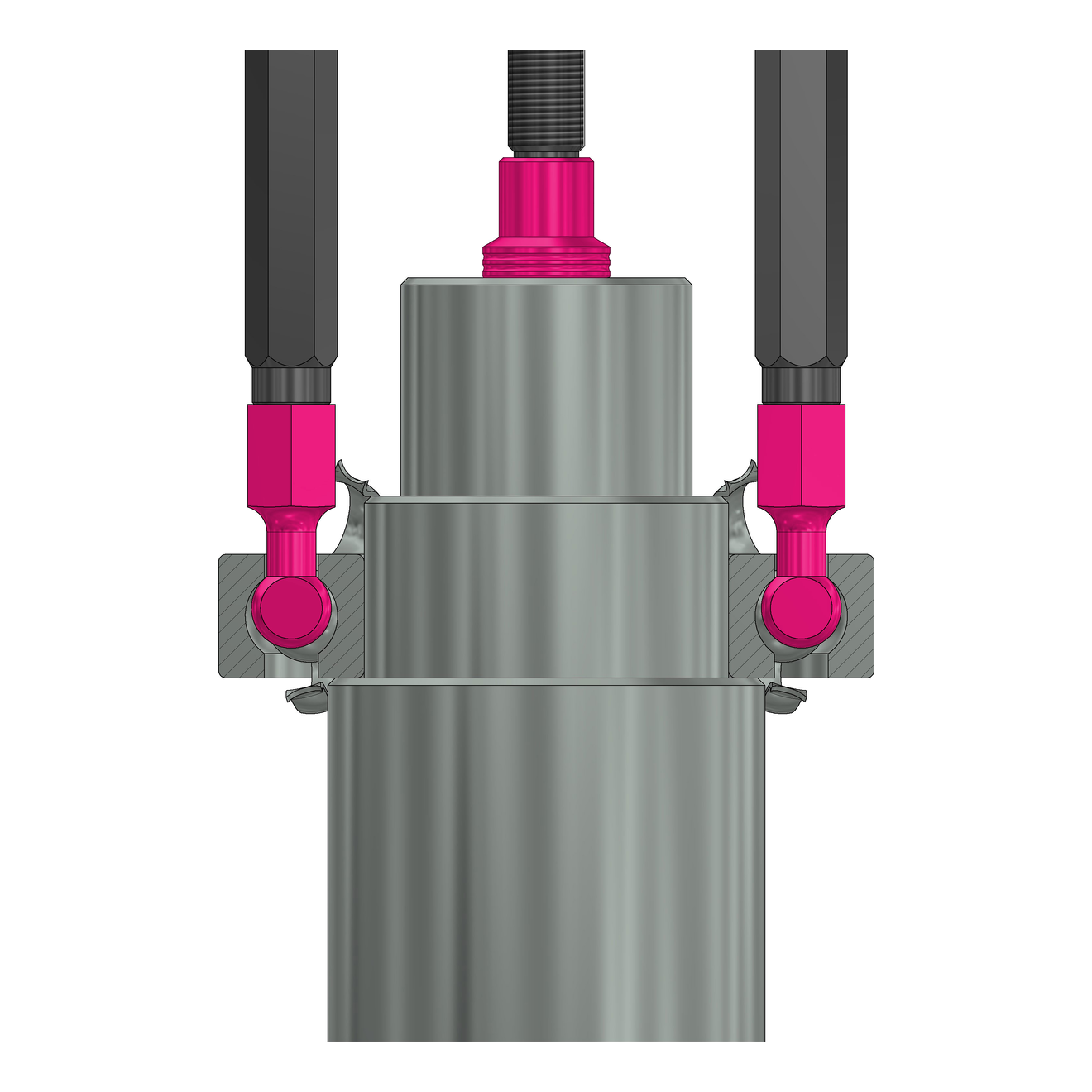

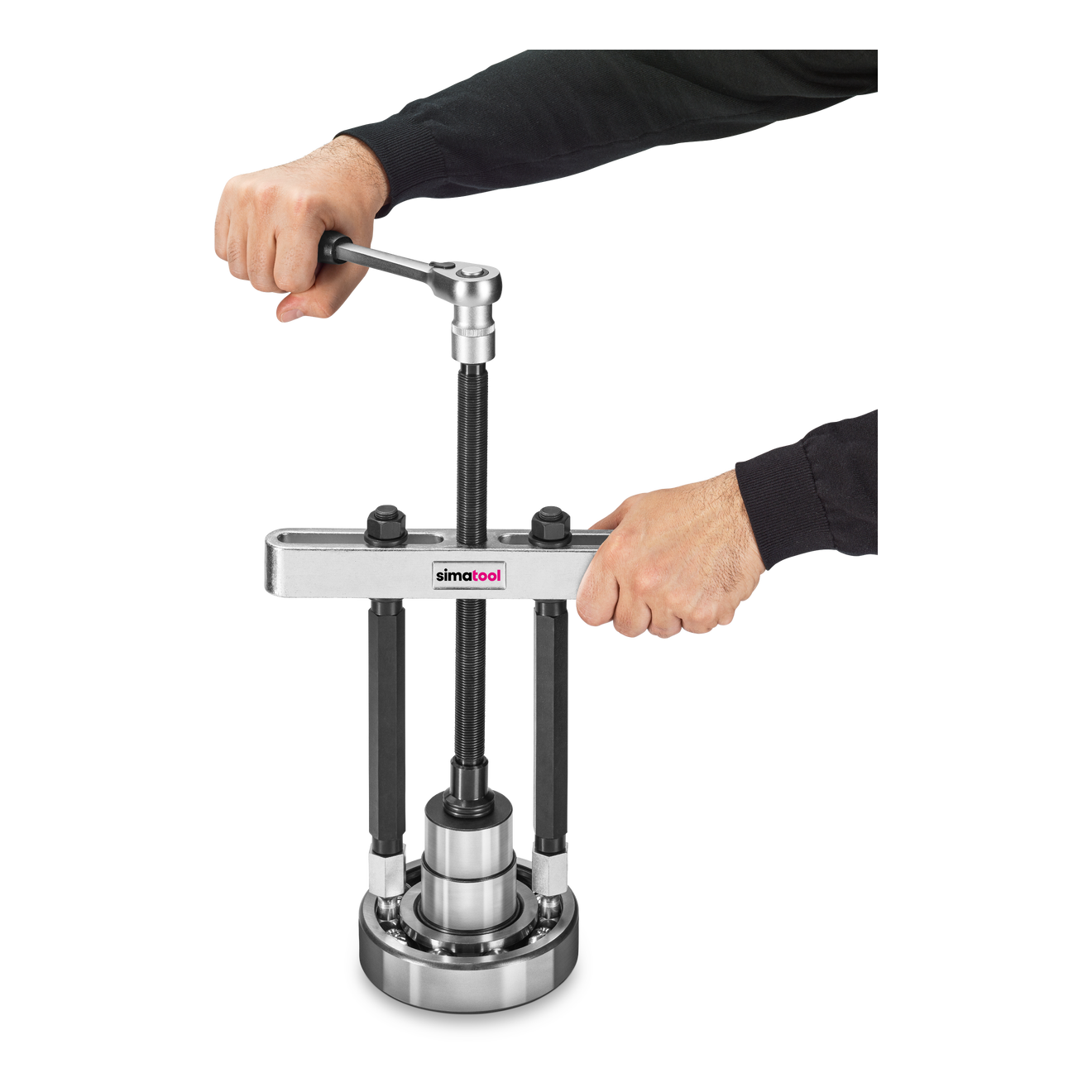

The BP 160 Bearing Puller enables the professional removal of deep groove ball bearings. Sealed bearings can also be removed after the corresponding seal has been removed. The ball adapters of the pull rod are inserted in the bearing race and then rotated by 90 degrees to ensure a secure hold. The BP 160 Bearing Puller makes it possible to remove more than 50 different deep groove ball bearings, with an inner diameter of 30 to 160 mm.
  • Prevents shaft damage by pulling the bearing safely
Bore diameter
30 – 160 mm (Bore)
Dimensions
437 x 379 x 100 mm
Scope of delivery

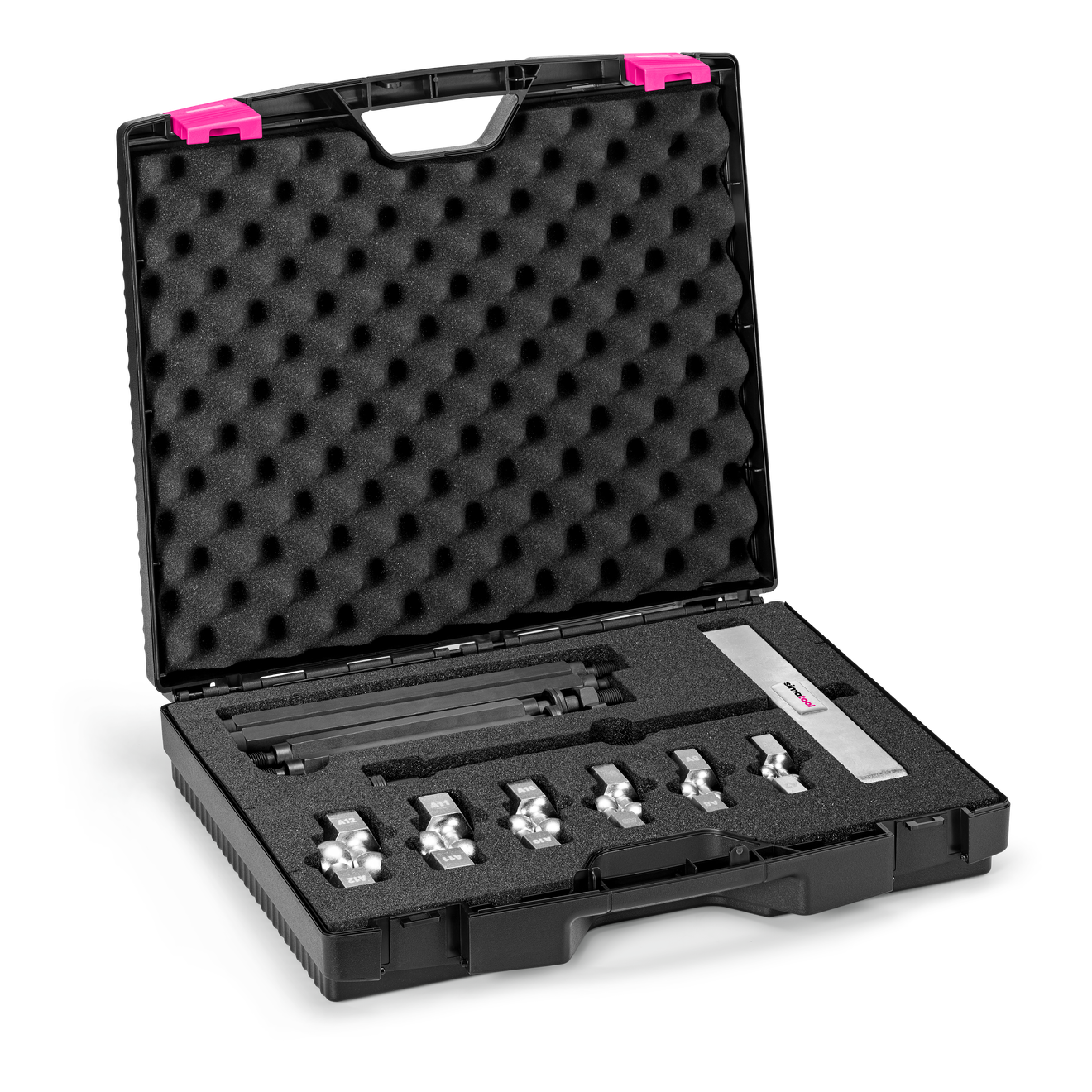

6x Ball adapter sets (A7-A12), 1x Spindle, 2x Pull rods, 2x Extensions
Function
Internal dismounting of large deep groove ball bearings
Maximum load
N/A
Weight
9.1 kg

Downloads

Skip product gallery

Compatible Accessories

in stock
Ball Adapter A7
Product number: 390-12300
Regular price: CHF 39.65
in stock
Ball Adapter A8
Product number: 390-12310
Regular price: CHF 43.87
in stock
Ball Adapter A9
Product number: 390-12320
Regular price: CHF 46.30
in stock
Ball Adapter A10
Product number: 390-12330
Regular price: CHF 51.90
in stock
Ball Adapter A11
Product number: 390-12340
Regular price: CHF 64.59
in stock
Ball Adapter A12
Product number: 390-12350
Regular price: CHF 67.21
in stock
Pull Rods
Product number: 390-12360
Regular price: CHF 134.42
