simatherm IH 210

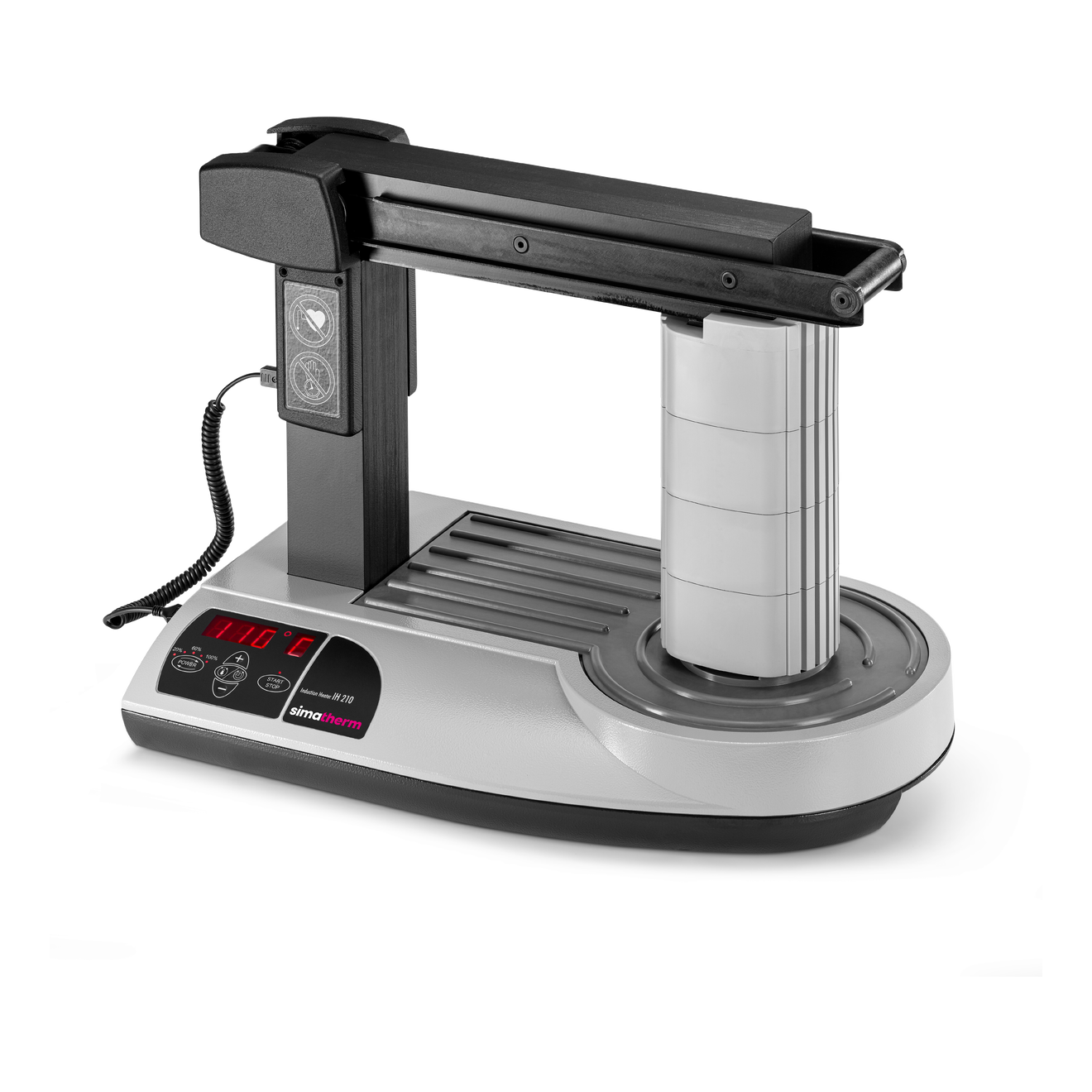

Heavy-duty heater for large bearings up to 300 kg, featuring a sliding yoke for easy loading.

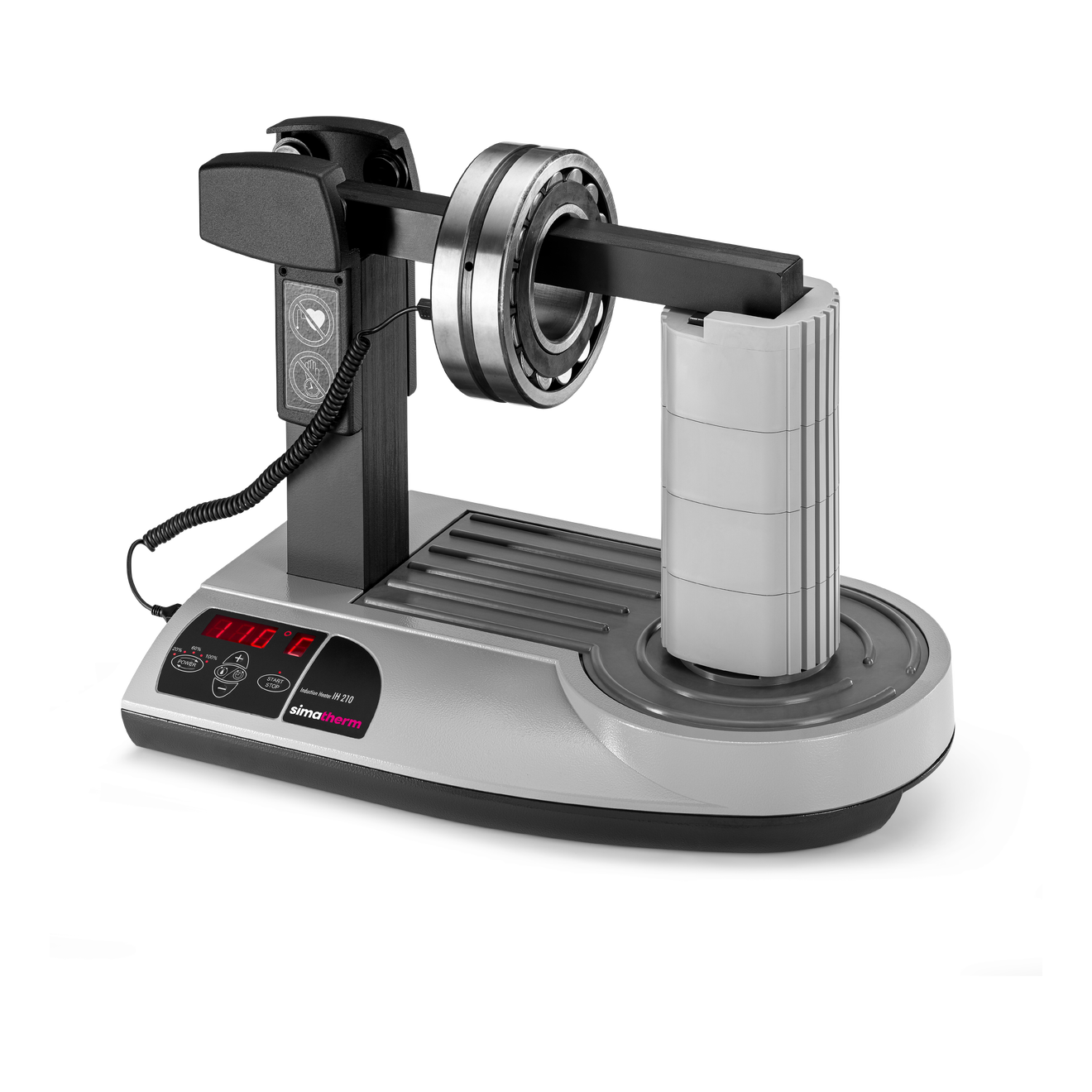

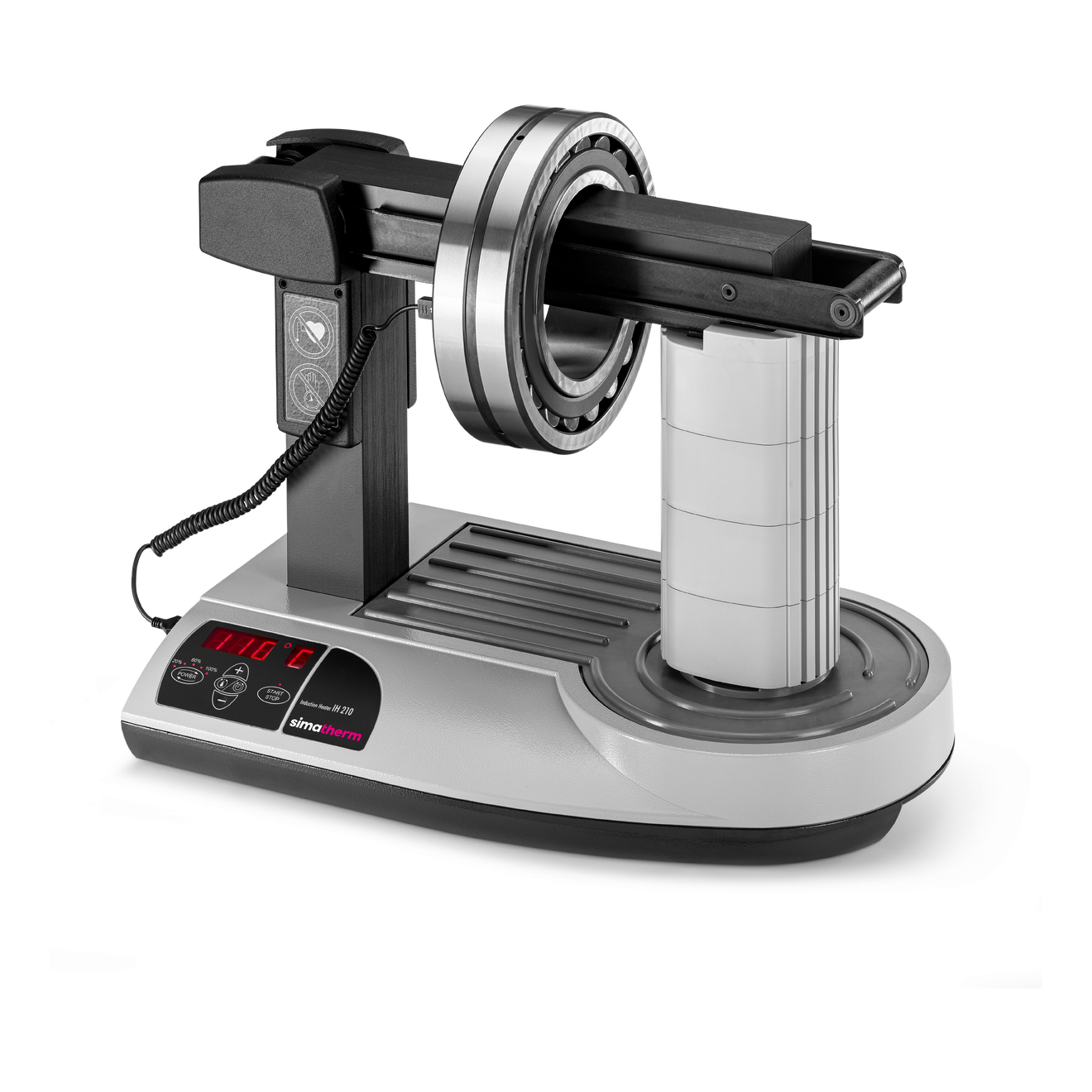

The IH 210 is suitable for heating large workpieces and rolling bearings weighing up to 300 kg. The IH 210 is supplied with two yokes as standard. The sliding yoke allows easy loading and unloading of the bearing
  • Sliding yoke for easy loading
  • Optional fan cooling (IH 210F)
Bore diameter
60 – 640 mm
Dimensions
600 x 350 x 420 mm
Scope of delivery
1x Heater, 1x Temp Probe, 1x Power Cord, 1x Protective Gloves, 2x Yokes (1 Sliding)
Voltage
400-480V / 11.5 kVA
Workpiece weight
300 kg
Temperature control
20 – 250°C
Time control
0 – 60 Min
Standard yokes included
2 (40x40, 70x70 mm)
Weight
75 kg
power
400-480 V / 11.5 kVA
swivel arm
without swivel arm
Skip product gallery

Compatible Accessories

in stock
Temperature Probe (Type K)
Product number: 190-10010
Regular price: CHF 308.81
in stock
Protective Gloves
Product number: 190-10020
Regular price: CHF 24.11
in stock
Standard Yoke 70mm
Product number: 190-14080
Regular price: CHF 776.03
in stock
Yoke 40mm
Product number: 190-14040
Regular price: CHF 353.72
in stock
Yoke 55mm
Product number: 190-14050
Regular price: CHF 565.47
in stock
Support Yoke Set
Product number: 190-14060
Regular price: CHF 862.14
in stock
Yoke Guides Set
Product number: 190-14130
Regular price: CHF 446.84
in stock
Standard Yoke 28mm
Product number: 190-14140
Regular price: CHF 305.85
in stock
Product number: 190-14150
Regular price: CHF 256.64
in stock
Product number: 190-14070
Regular price: CHF 547.00
in stock
Extra Small Yoke 14mm
Product number: 190-14170
Regular price: CHF 276.43
