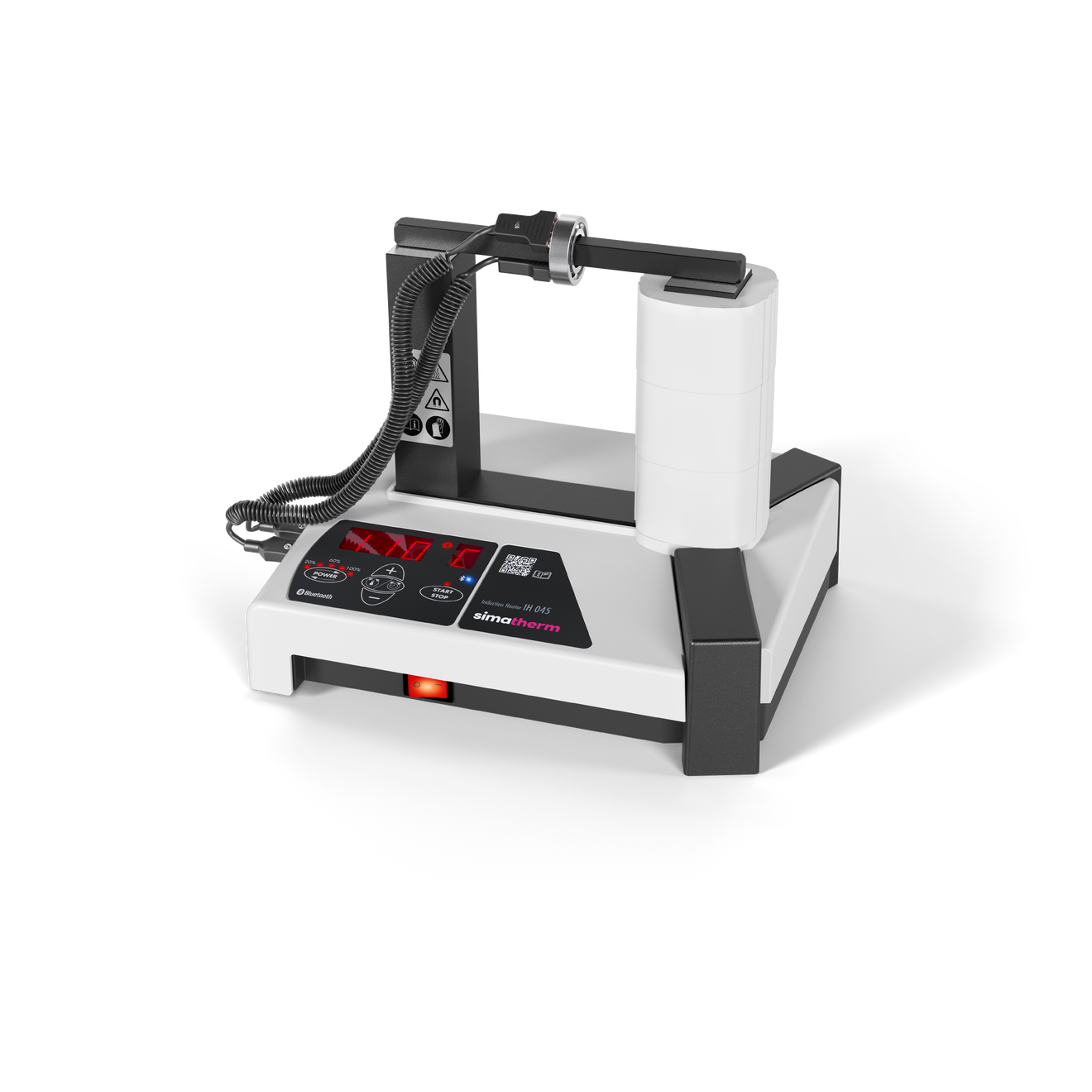

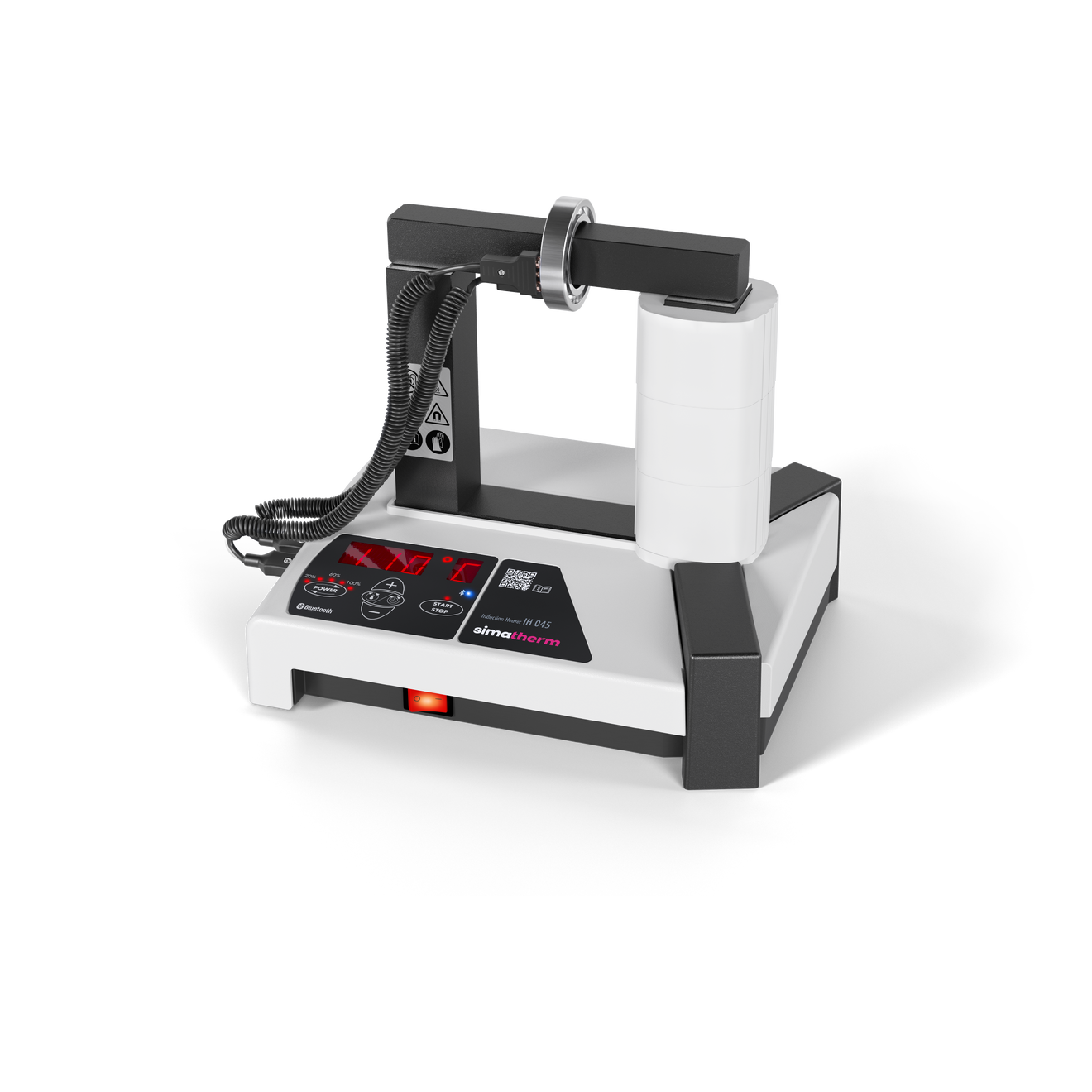

simatherm IH 045

Compact, app-controlled induction heater for small to medium bearings up to 45 kg.

The IH 045 is suitable for heating small and medium-sized workpieces up to 45 kg. Due to the external induction coil, the unit works extremely efficiently. The power can be adjusted in eight stages if required.
  • Display & App-controlled (Bluetooth)
  • Data logging

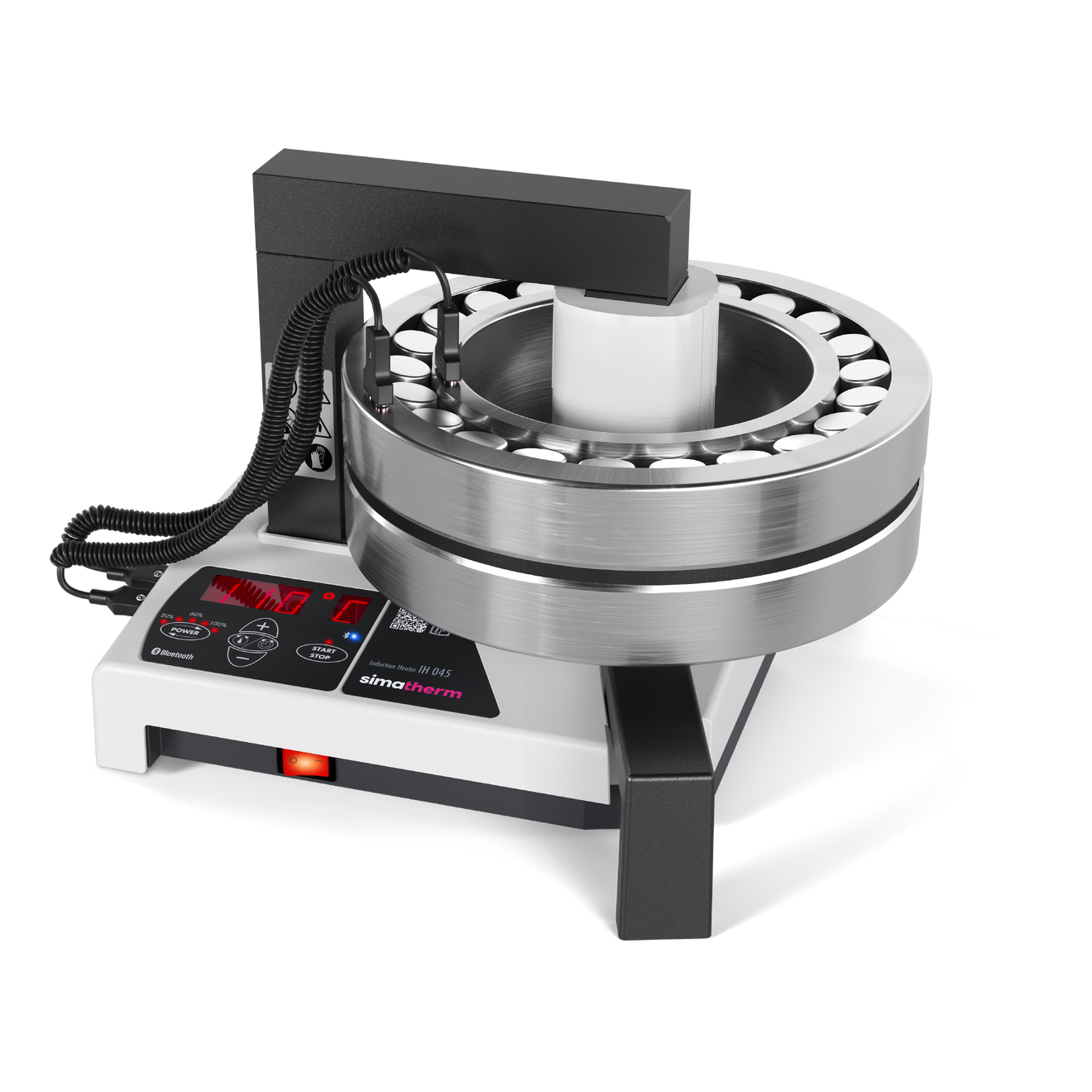

  • External coil for efficiency
  • Compact
Bore diameter
20 – 310 mm
Dimensions
320 x 267 x 293 mm
Scope of delivery
1x Heater, 1x Temp Probe, 1x Power Cord, 1x Protective Gloves, 3x Yokes
Voltage
230V / 2.1 kVA
Workpiece weight
45 kg
Temperature control
20 – 180°C
Time control
0 – 60 Min
Standard yokes included
3 (14x14, 28x28, 42.5x42.5 mm)
Weight
17 kg
power
230 V / 2.1 kVA
swivel arm
without swivel arm
